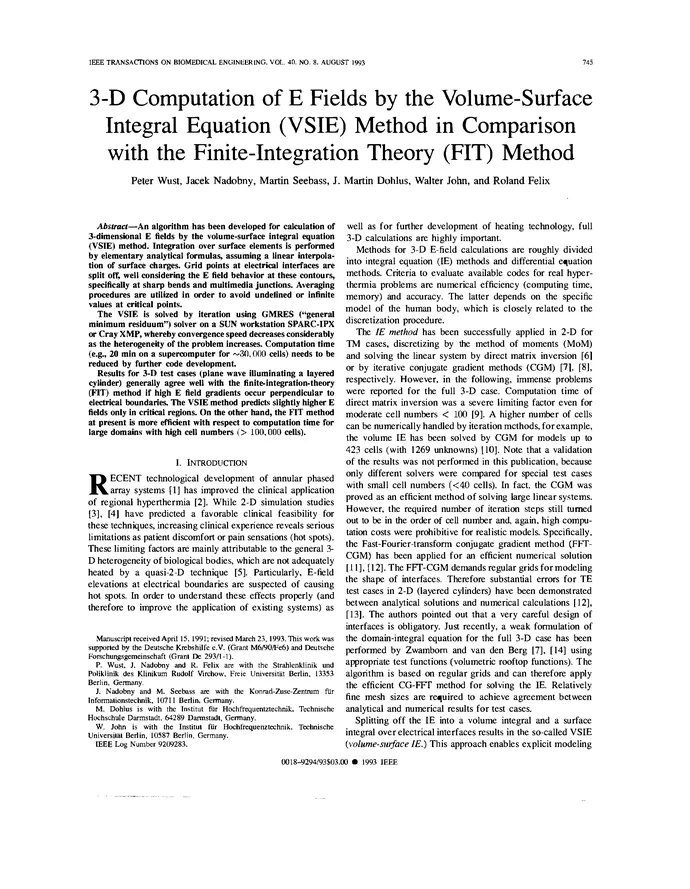

3-D computation of e fields by the volume-surface integral equation (VSIE) method in comparison with the finite-integration theory (FIT) method
Wust, P.; Nadobny, J.; Seebass, M.; Dohlus, J.M.; John, W.; Felix, R.
IEEE Transactions on Bio-Medical Engineering 40(8): 745-759
1993
ISSN/ISBN: 0018-9294 PMID: 8258441 DOI: 10.1109/10.238459
Accession: 045019648
Full-Text Article emailed within 0-6 h
Payments are secure & encrypted
Summary
An algorithm has been developed for calculation of 3-dimensional E fields by the volume-surface integral equation (VSIE) method. Integration over surface elements is performed by elementary analytical formulas, assuming a linear interpolation of surface charges. Grid points at electrical interfaces are split off, well considering the E field behavior at these contours, specifically at sharp bends and multimedia junctions. Averaging procedures are utilized in order to avoid undefined or infinite values at critical points. The VSIE is solved by iteration using GMRES ("general minimum residuum") solver on a SUN workstation SPARC-IPX or Cray XMP, whereby convergence speed decreases considerably as the heterogeneity of the problem increases. Computation time (e.g., 20 min on a supercomputer for approximately 30,000 cells) needs to be reduced by further code development. Results for 3-D test cases (plane wave illuminating a layered cylinder) generally agree well with the finite-integration-theory (FIT) method if high E field gradients occur perpendicular to electrical boundaries. The VSIE method predicts slightly higher E fields only in critical regions. On the other hand, the FIT method at present is more efficient with respect to computation time for large domains with high cell numbers (> 100,000 cells).
